Can You Weld a Metal Fuel Tank? Safety Tips & Best Methods

Welding a metal fuel tank is no small job. The thought alone might bring up images of explosions and sparks flying, but with the right precautions, it’s not impossible. The big question is – should you even try it? Let’s dive into the nitty-gritty and see if it’s worth risking your eyebrows for!

Getting the Tank Ready for Welding: What You Need to Know

Before you fire up that welder, you must ensure you’ve taken the proper precautions. Here’s how you prep a fuel tank for welding:

Drain the Fuel Completely
This should go without saying, but if fuel is sloshing around, welding is a no-go. Empty that tank to the last drop.

Clean Out Any Vapors
– Even when the tank’s dry, vapours stick around. A common trick is to wash the inside with soapy water or use steam cleaning. Some folks even purge it with an inert gas, like argon or nitrogen, to be extra cautious.

Check for Damage
– Before you weld, inspect the tank. Is it too thin or rusted? If the metal is too weak, welding could make things worse. Better safe than sorry.

How do you remove rust from inside a fuel tank before welding?

You can use a rust remover, such as phosphoric acid, or mechanical methods like sandblasting to clean rust out of the tank before welding.

Welding Methods That Work for Metal Fuel Tanks

Okay, so you’ve got the tank cleaned out, and you’re ready to go. But what’s the best way to weld it? Not all welding methods are created equal, especially for something as tricky as a fuel tank.

1. TIG Welding
   – TIG welding is a great choice for fuel tanks. Why? It’s precise and creates less heat. That’s important because too much heat can warp the metal or make a bigger problem than you started with. This method is perfect if you’re dealing with thin metals.
2. MIG Welding
   – If your tank is thicker, MIG welding might be your go-to. It’s quicker, but it does produce more heat, which can be a little risky. Still, it’s solid for bigger repairs.

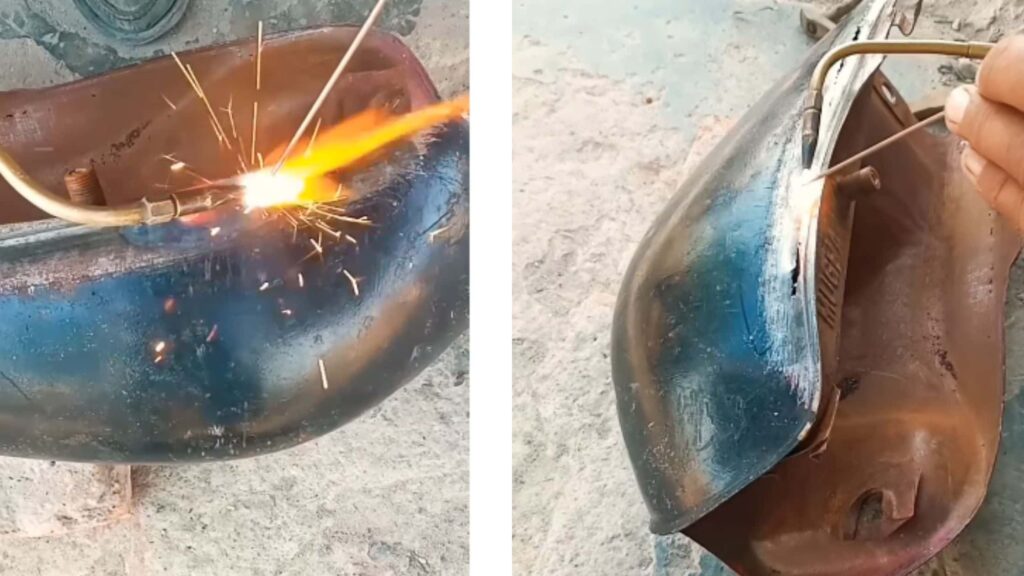

3. Brazing
   – Want a low-heat option? Brazing could be your answer. It doesn’t require as much heat as welding, and it’s ideal for smaller cracks. Think of it like using a super-strong glue to hold the metal together.

Problems You Might Face During Fuel Tank Welding

Even with the best prep and the right tools, stuff can go wrong. Here are a few common hiccups you might face when welding a metal fuel tank:

• Vapor Pockets
  – If any gas pockets are left inside, you’re asking for trouble. They can expand and cause serious problems mid-weld.
• Cracks Spreading
  – If the metal gets too hot, cracks can spread like wildfire. You’ll want to keep a close eye on the temperature as you work.
• Post-Weld Leaks
  – After you’ve welded the tank, check for leaks. You’d be surprised how often tiny holes sneak through even a good weld. Test it by filling the tank with water or air and checking for bubbles or drips.

When Should You Avoid Welding and Replace the Tank?

Not every fuel tank is worth saving. There are a few cases where it’s better to just cut your losses and get a new one.

For example:

• Severe Rust
  – If rust has eaten away at large sections of the tank, welding it won’t fix the bigger issue. It’s like trying to patch up a sinking ship with duct tape.
• Too Thin
  – Over time, tanks can wear down to the point where welding will do more harm than good. If the metal is paper-thin in spots, it’s time to shop for a replacement.

Sure, buying a new tank might sting your wallet a bit, but your safety isn’t worth the gamble. And let’s be honest – you don’t want to deal with a fuel leak later on.

Testing the Tank After Welding

Once you’ve finished welding, don’t just assume everything’s peachy. There’s one last step – testing.

1. Pressure Testing
   – Fill the tank with water or air and check for leaks. This will show you if any weak spots remain.
2. Visual Inspection
   – Look for warping, cracks, or signs that the weld didn’t take properly. Sometimes, problems only show up after the metal cools.

Alternatives to Welding a Metal Fuel Tank

If welding isn’t a suitable option, here are several alternatives for repairing a metal fuel tank:

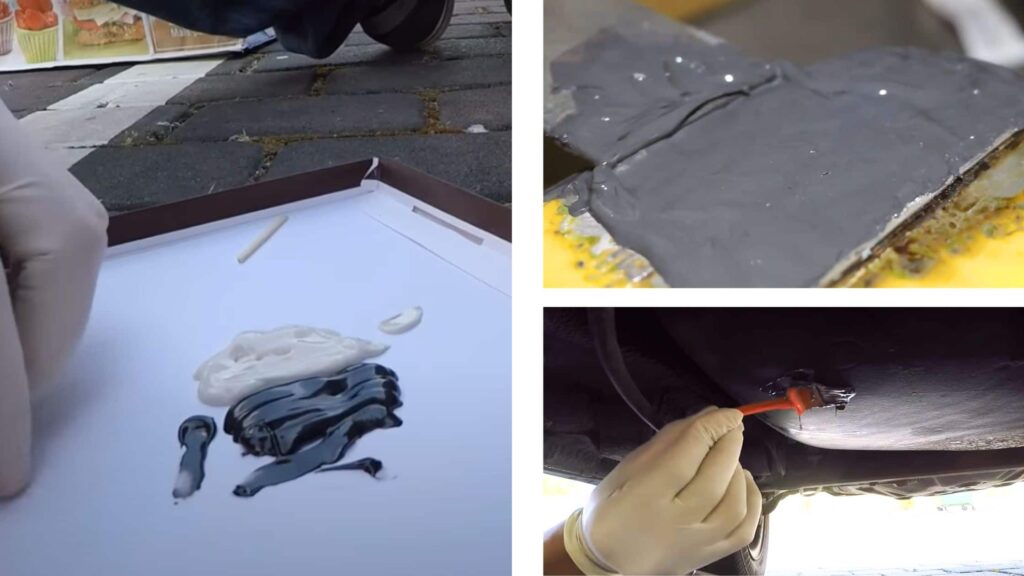

• Fuel Tank Repair Kits:
  These kits typically include epoxy or resin-based compounds. They can be applied to small cracks or holes as a temporary fix. While easy to use, they might not provide a long-lasting solution for larger or more severe damage.
• Brazing:
  Brazing involves joining metal with a filler rod that melts at a lower temperature than the tank material. It creates a strong bond without needing the high heat used in welding, making it a safer alternative for minor repairs.
• Sealants:
  Fuel tank-specific sealants are applied inside the tank to coat and seal small leaks and cracks. This method works best for minor issues but isn’t ideal for extensive damage or structural repairs.

Frequently Asked Questions

1) What’s the safest way to weld a fuel tank?

The safest method is to ensure the tank is completely empty, cleaned, and purged of any remaining vapours. Using TIG or MIG welding under controlled conditions is generally safe, but always be cautious.

2) Can you use brazing instead of welding for fuel tank repairs?

Yes, brazing can be used for smaller cracks or holes. It requires less heat than welding and may be a safer option for minor repairs.

3) What protective gear should I use when welding a fuel tank?

Wear a welding helmet, fire-resistant gloves, protective clothing, and safety goggles. Also, make sure you’re working in a well-ventilated area to avoid inhaling harmful fumes.

4) Why does my fuel tank still smell like gas after cleaning?

It could be due to residual vapours that haven’t been fully purged. Consider using an inert gas purge or steam cleaning to ensure the tank is completely vapour-free before welding.

5) Can you weld a fuel tank while it’s still attached to the vehicle?

It’s highly discouraged to weld a fuel tank while it’s attached to a vehicle. The risk of fire or explosion is much higher. Always remove the tank before attempting to weld.
